In the realm of contemporary architecture, the fusion of natural inspiration with cutting-edge technology continues to push the boundaries of design innovation. The Zen Gems parametric facade system represents a breakthrough in architectural cladding, transforming building exteriors into dynamic, gemstone-inspired works of art through precision-engineered metal modules.
Design Inspiration: Where Nature Meets Geometry
The Zen Gems facade draws its inspiration from the mesmerizing beauty of natural gemstones and crystals. Just as light refracts through a diamond’s facets or dances across the surface of polished jade, this parametric system creates an ever-changing visual experience that responds to sunlight, viewing angles, and atmospheric conditions.
The design philosophy embraces the principle of ‘controlled randomness’ – each module is precisely calculated yet appears organically placed, mimicking the natural formation of crystalline structures. This approach creates facades that are simultaneously ordered and dynamic, evoking the zen-like balance between structure and fluidity.
- GIVA Jewellery Showroom: Where Architecture Becomes a Diamond – https://sogadesignstudio.com/wp-admin/post.php?post=4801&action=edit
- Precision Parametric Zinc Facade – SOGA Design Studio – https://sogadesignstudio.com/wp-admin/post.php?post=4797&action=edit
Technical Specifications
Material Composition
The Zen Gems system utilizes premium-grade metals specifically selected for architectural applications:
- Aluminum alloy modules (6061-T6 and 5052-H32) for lightweight strength and superior corrosion resistance
- Stainless steel options (304 and 316 grade) for coastal or high-corrosion environments
- Corten steel variants for projects seeking a natural weathering aesthetic
- Brass and copper options for luxury applications requiring distinctive patina development

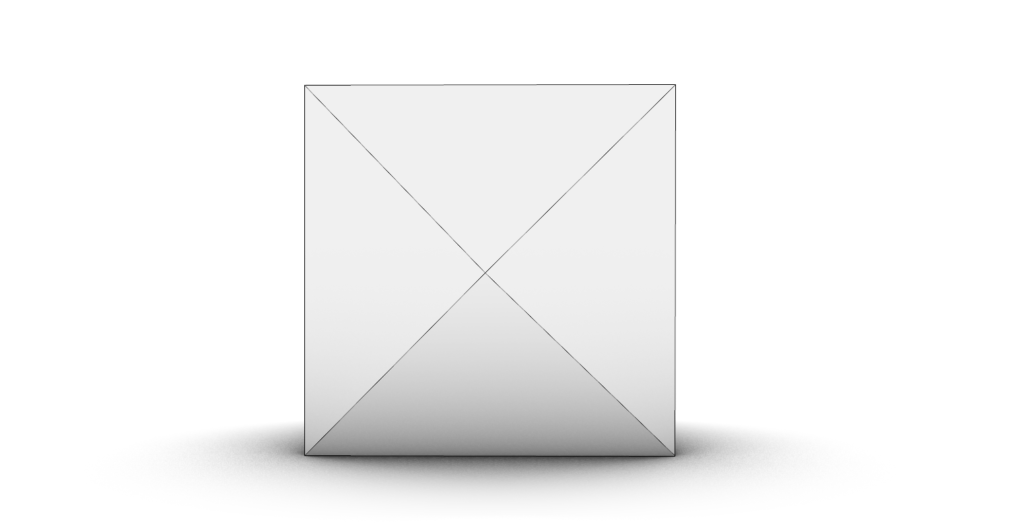

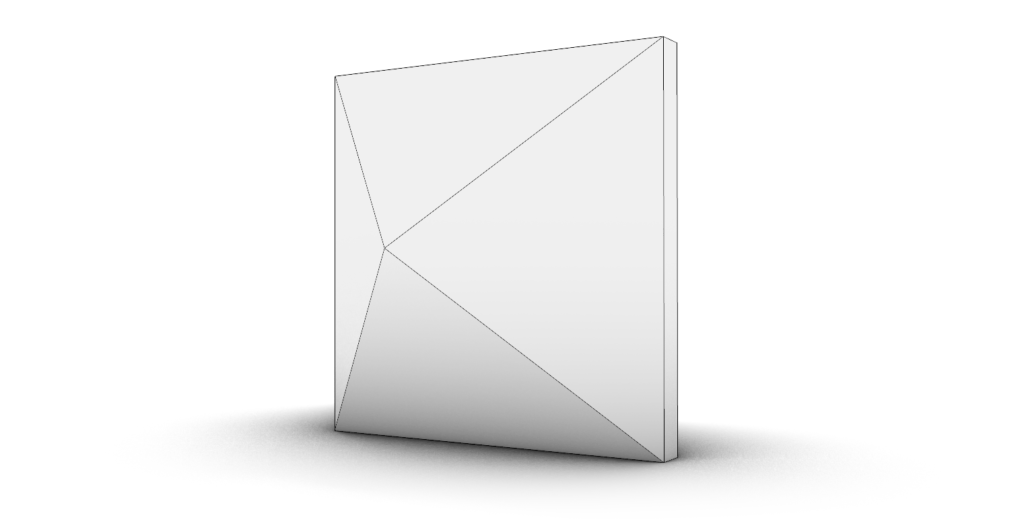

Module Dimensions and Configuration
Each Zen Gems module is parametrically designed with the following specifications:
- Standard module sizes: 300mm x 300mm, 400mm x 400mm, 600mm x 600mm
- Custom sizing: Available from 200mm to 1200mm per side
- Thickness range: 2mm to 4mm depending on material and span requirements
- Facet angles: Precisely calculated between 15° to 75° for optimal light reflection
- Module weight: 0.8 kg to 4.5 kg depending on size and material
Surface Finishes
The system offers multiple finish options to achieve desired aesthetic effects:
- Polished finish: Mirror-like surface for maximum light reflection
- Brushed finish: Directional grain for subtle elegance
- Anodized colors: Available in natural, bronze, black, and custom colors
- Powder-coated: RAL color matching for specific design requirements
- PVD coating: Titanium nitride or other decorative/protective coatings
- Natural patina: For brass, copper, and corten applications
Parametric Design Capabilities
The true innovation of Zen Gems lies in its parametric flexibility:
Computational Design
Utilizing advanced parametric software (Grasshopper for Rhino), architects can:
- Define custom pattern distributions across any building geometry
- Control module density for varying levels of transparency and shading
- Adjust facet orientations to optimize solar gain or shading performance
- Create gradient effects transitioning between different module configurations
- Integrate with environmental analysis tools for performance-based design
Adaptability
The system adapts to:
- Flat, curved, and compound-curved surfaces
- Regular and irregular building geometries
- Integration with other facade systems
- Varying structural constraints and fixing conditions
Installation System
Mounting Solutions
The Zen Gems system features a sophisticated yet practical installation approach:
- Hidden fastening system: Modules connect via concealed clips maintaining visual purity
- Substructure compatibility: Works with aluminum rail systems, steel frameworks, or direct-to-substrate mounting
- Drainage integration: Built-in channels ensure water management behind facade
- Thermal breaks: Optional isolation for enhanced energy performance
- Seismic compliance: Engineered to meet requirements in high-seismic zones
Installation Specifications
- Typical installation rate: 15-25 square meters per day per crew
- Substrate requirements: Compatible with concrete, masonry, steel, and timber structures
- Weather resistance: Tested to withstand wind loads up to 3.0 kPa
- Fixing interval: Typically 600mm vertical and horizontal centers
Performance Characteristics
Environmental Performance
- Solar heat gain coefficient: Adjustable based on module configuration (0.25 – 0.65)
- Shading efficiency: Up to 70% solar shading while maintaining views
- Thermal performance: R-value up to 2.5 with integrated insulation backing
- Acoustic performance: Sound reduction of 25-35 dB depending on configuration
Durability and Maintenance
- Corrosion resistance: Class C5 (very high) for marine and industrial environments
- UV stability: No degradation or color shift from UV exposure
- Finish longevity: 15-25 years before refinishing required (varies by finish type)
- Fire rating: Non-combustible (Class A) when using aluminum or steel substrates
- Maintenance: Annual washing recommended; low maintenance otherwise
Warranty Coverage
Comprehensive Protection
Zen Gems facades come with industry-leading warranty coverage:
Structural Warranty – 25 Years
- Coverage for structural integrity of modules
- Protection against manufacturing defects
- Guarantee of proper fixing system performance
- Coverage includes wind load resistance and seismic performance
Finish Warranty – 15 Years
- Protection against finish degradation, peeling, or flaking
- Color fastness guarantee (anodized and powder-coated finishes)
- Coverage for corrosion breakthrough
- Excludes natural patina development on copper, brass, and corten
Weather Seal Warranty – 10 Years
- Guarantee of weather-tightness
- Protection against water infiltration
- Coverage for gasket and seal performance
Performance Warranty – 5 Years
- Guarantee of stated thermal and acoustic performance
- Coverage for hardware and moving components (if applicable)
- Protection for integration with building systems
Warranty Conditions
Warranty coverage requires:
- Professional installation by certified installers
- Compliance with installation guidelines
- Regular maintenance per manufacturer recommendations
- Use of approved cleaning methods and materials
- Registration within 30 days of installation completion
Sustainability Profile
Environmental Credentials
- Recycled content: Up to 90% recycled aluminum available
- End-of-life recyclability: 100% recyclable materials
- Embodied carbon: Lower than glass and natural stone alternatives
- Local manufacturing: Reduced transportation emissions through regional production
- Longevity: 50+ year service life reduces replacement frequency
Green Building Contributions
Zen Gems supports certification under:
- LEED v4 (credits for recycled content, regional materials, innovation)
- BREEAM (daylighting, thermal performance, responsible sourcing)
- WELL Building Standard (daylighting, visual comfort)
- Living Building Challenge (Red List Free, responsible industry)
Applications and Case Studies
Ideal Applications
The Zen Gems system excels in:
- Commercial office buildings: Creating distinctive corporate identities
- Hospitality projects: Luxury hotels and resort facades
- Cultural institutions: Museums, galleries, and performance venues
- Mixed-use developments: Residential towers with retail podiums
- Healthcare facilities: Healing environments with biophilic design
- Educational buildings: Inspiring learning environments
- Retail facades: Attracting attention and creating brand presence
Design Versatility
- Full-building cladding: Complete envelope solutions
- Feature walls: Accent areas and entrance statements
- Canopies and overhangs: Sheltered outdoor spaces
- Interior applications: Lobby features, partition walls, ceiling treatments
- Screening: Privacy while maintaining visual interest
Customization and Design Services
Collaborative Design Process
The Zen Gems team provides comprehensive support:
- Concept Development: Working with architects to translate vision into feasible facade designs
- Parametric Modeling: Custom scripting for project-specific patterns and geometries
- Performance Analysis: Solar studies, thermal modeling, and structural verification
- Mock-up Production: Physical samples for material and finish approval
- Fabrication Drawings: Detailed shop drawings for manufacture and installation
- Technical Support: On-site assistance during installation
Digital Deliverables
- Rhino/Grasshopper source files
- BIM models (Revit compatible)
- 3D visualization renderings
- Physical performance data
- Installation manuals and details
Related Projects:
Factors affecting cost:
- Material selection and finish complexity
- Module size and configuration density
- Project size and production volume
- Geometric complexity
- Site accessibility and installation conditions
- Regional labor rates
Value Proposition
While premium-priced, Zen Gems offers:
- Unique aesthetic impossible with standard systems
- Longevity exceeding conventional facades
- Low maintenance requirements
- Enhanced building performance
- Increased property value and marketability
Technical Support and Resources
Professional Services
Comprehensive support includes:
- Design consultation: Expert guidance throughout design phases
- Engineering services: Structural calculations and wind load analysis
- Sample programs: Material and finish samples for specification
- Testing: Custom performance testing for project-specific requirements
- Training: Installer certification programs
- Documentation: Complete technical manuals and CAD details
Quality Assurance
- ISO 9001 certified manufacturing
- Third-party testing verification
- Project-specific quality control protocols
- Pre-installation inspections
- Post-installation verification
Conclusion
The Zen Gems parametric facade system represents a sophisticated fusion of artistic vision, computational design, and precision manufacturing. By translating the organic beauty of gemstones into architectural-scale installations, it offers designers an unprecedented tool for creating facades that are both technically excellent and visually extraordinary.
With its comprehensive warranty coverage, proven performance characteristics, and virtually unlimited customization possibilities, Zen Gems stands as a premium solution for projects demanding the highest levels of design innovation and build quality. The system’s parametric nature ensures that each installation is unique, allowing architects to create signature buildings that capture light, express movement, and inspire wonder.
Whether deployed as a complete building envelope or strategic accent, Zen Gems transforms architecture into art, proving that the future of facade design lies at the intersection of nature’s timeless beauty and technology’s limitless potential.
Contact and Ordering Information
For project inquiries, technical specifications, or to schedule a consultation:
- Visit the Zen Gems design configurator for preliminary explorations
- Request detailed technical documentation
- Schedule mock-up production for material verification
- Connect with regional representatives for site-specific assessments
The Zen Gems team is committed to supporting visionary architecture through innovative facade solutions that elevate buildings from mere structures to memorable landmarks.
